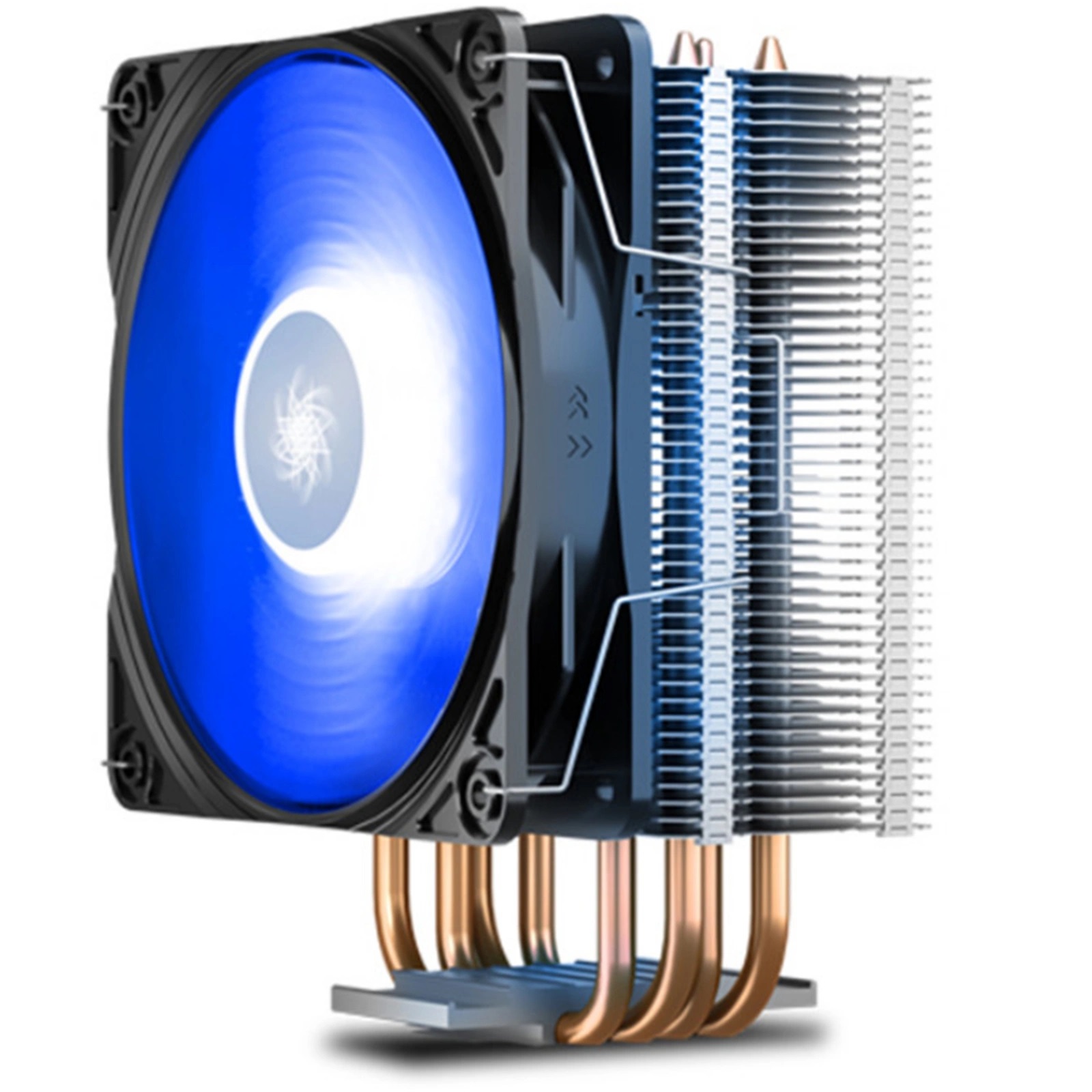

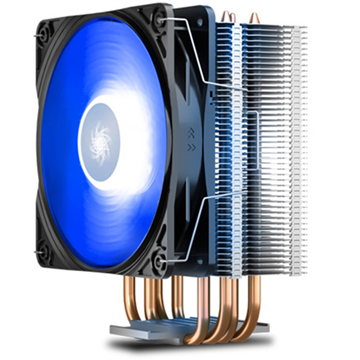

DeepCool Gammaxx 400 CPU Cooler 4 Heatpipes 120mm PWM Blue LED Fan

Brand: DeepCool
Product Code: 1415
Availability: In Stock
Status: Brand New
Warranty: One Year RTB Warranty
Manufacturer Url: http://www.deepcool.com/product/cpucooler/2013-12/7_487.shtml

Price: $69.00 GST Inclusive $60.00 GST Exclusive

Features



Being one of Deepcool's superstar products is not easy. Gammaxx 400 has proven to be one of the most recommended CPU cooler for its excellent heat dissipation performance, plus blue LED light as awesome appearance. Gammaxx 400 is attachable with second fan, never missed to be a solution for gaming thermal requirement.

AMD AM4 Ready.



Equipped with multiple clips to support Intel LGA2011/1366/1156/1155/1151/1150/775 and AMD AM4/FM2/FM1/AM3+/AM3/AM2+/AM2/K8.



4 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.



120x120x25mm PWM fan offers optimal airflow.



Semi-transparent fan with white LED, modding looking.



Easy installation without moving the motherboard.



Extra fan clips provided allow adding a second fan to form a push-pull config. (Some pcs, which are old version, are euipped with two clips only).



Specifications



Overall Dimension:

135X80X154.5mm

Fan Dimension:

Ø120x120x25mm

Net Weight:

670g

Bearing Type:

Hydro Bearing

Rated Voltage

12VDC

Operating Voltage:

10.8~13.2VDC

Started Voltage:

7VDC

Rated Current:

0.25±10%A(MAX)

Power Input:

3.0W

Fan Speed:

900±150~1500±10%RPM

Max. Air Flow:

74.34CFM

Noise:

17.8~30dB(A)



Intel Socket

130W

LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/ LGA1150/LGA1151/LGA775

High End Desktop i7

Core i7/i5/i3

Core 2 Extreme

Core 2 Quad

Core 2 Duo

Pentium/Pentium G

Celeron/Celeron G



AMD Socket 125W



AM4/FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2(NOTE: Manuals for AM4, please refer to FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2)

APU A12/A10/A8/A6/A4

FX 8/6/4-Core

Phenom II X6/X4/X3/X2

Phenom X4/X3/X2

Athlon II X4/X3/X2

Athlon X4/X2

Athlon

Sempron
