Product Description:

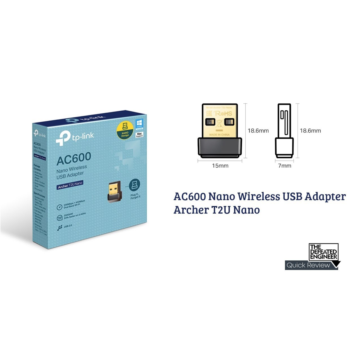

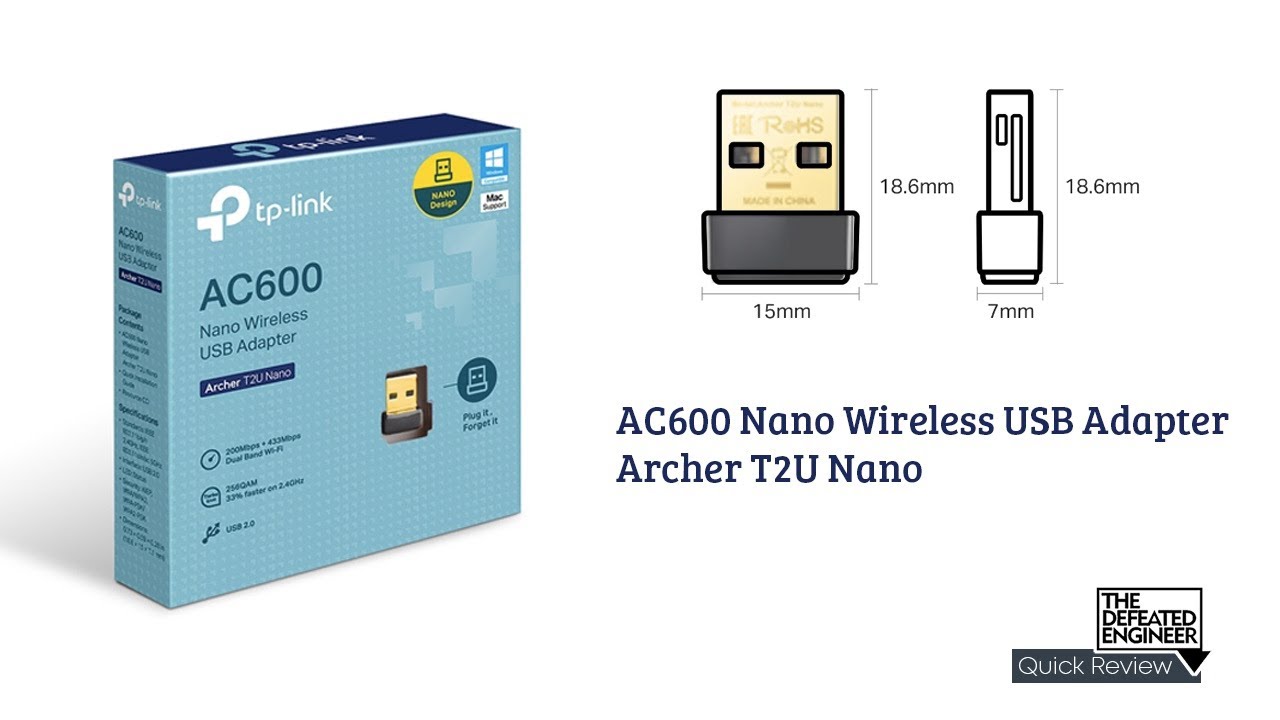

TP-Link Archer T2U Nano AC600 Dual Band Wireless USB Adapter

The Archer T2U Nano receives Wi-Fi signals on two separate bands. Supporting 256QAM technology increases 2.4GHz data rate from 150Mbps to 200Mbps for 33% faster performance. 433Mbps on 5GHz is ideal for HD video streaming and lag-free online gaming, while 200Mbps on 2.4GHz is perfect for normal use such as web surfing with legacy devices.

Features:

• High Speed WiFi– Up to 600Mbps speeds with 200Mbps on 2.4GHz and 433 Mbps on 5GHz, upgrades your devices to higher AC WiFi speeds.

• Dual Band Wireless – 2.4GHz and 5GHz band for flexible connectivity, upgrades your devices to work with the latest dual-band WiFi router for faster speed and extended range.

• Nano design – Small, unobtrusive design allows you to plug it in and forget it is even there

• Advanced Security –Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards

Specifications:

Hardware Features:

• Interface: USB 2.0

• Dimensions ( W x D x H ): 15 x 7.1 x 18.6mm

• Antenna Type: Omni Directional



Wireless Features:

• Wireless Standards: IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

• Frequency: 5GHz, 2.4GHz

• Signal Rate - 5GHz: 11ac: Up to 433Mbps(dynamic), 11n: Up to 150Mbps(dynamic), 11a: Up to 54Mbps(dynamic)

• Signal Rate - 2.4GHz, 11n: Up to 200Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)

• Reception Sensitivity - 5GHz: 11a 6Mbps: -90dBm, 11a 54Mbps: -73dBm, 11n HT20 MCS0: -89dBm, 11n HT20 MCS7: -70dBm, 11n HT40 MCS0: -86dBm, 11n HT40 MCS7: -67dBm, 11ac VHT80 MCS0: -82dBm, 11ac VHT80 MCS9: -56dBm

• Reception Sensitivity - 2.4GHz: 11b 1Mbps: -96dBm, 11b 11Mbps: -88dBm, 11g 6Mbps: -89dBm, 11g 54Mbps: -74dBm, 11n HT20 MCS0: -89dBm, 11n HT20 MCS7: -72dBm, 11n HT40 MCS0: -86dBm, 11n HT40 MCS7: -66dBm

• Transmit Power: < 20dBm (EIRP)

• Wireless Modes: Ad-Hoc / Infrastructure mode

• Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x

• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM



General:

• Certification: CE, FCC, RoHS

• Operating Temperature: 0° C ~ 40° C

• Storage Temperature: -40° C ~ 70° C

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing

Requirements:

• Windows 7 / 8 / 8.1 / 10 / XP

• Mac OS X 10.9-10.13

Package Contents:

• AC600 Nano Wireless USB Adapter Archer T2U Nano

• Resource CD

• Quick Installation Guide
