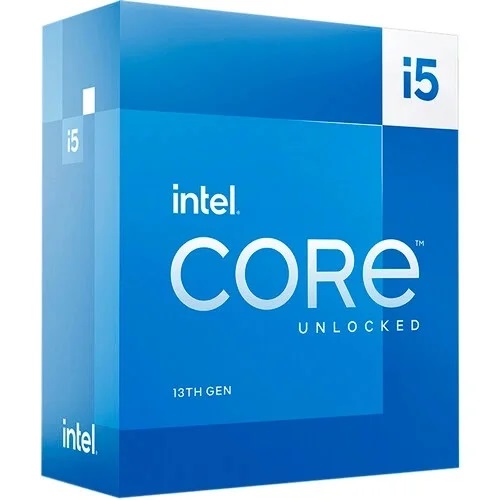

Intel Core i5-13600K 5.1GHz 14 Core 20 Thread Core Processor with Integrated Graphics

MPN: BX8071513600K

Power up your productivity, gaming, and content creation with the Intel Core i5-13600K 3.5 GHz 14-Core LGA 1700 Processor. This 13th generation desktop processor builds upon the Hybrid Core architecture and Intel 7 process by fitting 14 cores - four more than the previous generation -onto a single processor while still fitting the LGA 1700 socket. Designed to provide strong performance for everyday tasks, the Core i5-13600K features eight low-voltage Efficient-cores that handle background tasks for multitasking while the six 3.5 GHz Performance-cores power applications and games. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.

Specifications:

Essentials:

• Product Collection: 13th Generation Intel Core i5 Processors

• Code Name: Products formerly Raptor Lake

• Vertical Segment: Desktop

• Processor Number: i5-13600K

• Lithography: Intel 7

• Use Conditions: PC/Client/Tablet



CPU Specifications:

• Total Cores: 14

• Number of Performance-cores: 6

• Number of Efficient-cores: 8

• Total Threads: 20

• Max Turbo Frequency: 5.10 GHz

• Performance-core Max Turbo Frequency: 5.10 GHz

• Efficient-core Max Turbo Frequency: 3.90 GHz

• Performance-core Base Frequency: 3.50 GHz

• Efficient-core Base Frequency: 2.60 GHz

• Cache: 24 MB Intel Smart Cache

• Total L2 Cache: 20 MB

• Processor Base Power: 125 W

• Maximum Turbo Power: 181 W



Memory Specifications:

• Max Memory Size (dependent on memory type): 128 GB

• Memory Types: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s

• Max Number of Memory Channels: 2

• Max Memory Bandwidth: 89.6 GB/s

• ECC Memory Supported: Yes



Processor Graphics:

• Processor Graphics: Intel UHD Graphics 770

• Graphics Base Frequency: 300 MHz

• Graphics Max Dynamic Frequency: 1.50 GHz

• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1

• Execution Units: 32

• Max Resolution (HDMI): 4096 x 2160 @ 60Hz

• Max Resolution (DP): 7680 x 4320 @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz

• DirectX Support: 12

• OpenGL Support: 4.5

• OpenCL Support: 3.0

• Multi-Format Codec Engines: 2

• Intel Quick Sync Video: Yes

• Intel Clear Video HD Technology: Yes

• Number of Displays Supported: 4

• Device ID: 0xA780



Expansion Options:

• Direct Media Interface (DMI) Revision: 4.0

• Max Number of DMI Lanes: 8

• Scalability: 1S Only

• PCI Express Revision: 5.0 and 4.0

• PCI Express Configurations: Up to 1x16+4, 2x8+4

• Max Number of PCI Express Lanes: 20



Package Specifications:

• Sockets Supported: FCLGA1700

• Max CPU Configuration: 1

• TJUNCTION: 100°C



Advanced Technologies:

• Intel Gaussian & Neural Accelerator: 3.0

• Intel Thread Director: Yes

• Intel Deep Learning Boost (Intel DL Boost): Yes

• Intel Speed Shift Technology: Yes

• Intel Turbo Boost Max Technology 3.0: No

• Intel Turbo Boost Technology: 2.0

• Intel Hyper-Threading Technology: Yes

• Intel 64: Yes

• Instruction Set: 64-bit

• Instruction Set Extensions: Intel SSE4.1, Intel® SSE4.2, Intel® AVX2

• Idle States: Yes

• Enhanced Intel SpeedStep Technology: Yes

• Thermal Monitoring Technologies: Yes

• Intel Volume Management Device (VMD): Yes



Security & Reliability:

• Intel Standard Manageability (ISM): Yes

• Intel Control-Flow Enforcement Technology: Yes

• Intel AES New Instructions: Yes

• Secure Key: Yes

• Intel OS Guard: Yes

• Intel Trusted Execution Technology: Yes

• Execute Disable Bit: Yes

• Intel Boot Guard: Yes

• Mode-based Execute Control (MBEC): Yes

• Intel Stable IT Platform Program (SIPP): Yes

• Intel Virtualization Technology with Redirect Protection (VT-rp): Yes

• Intel Virtualization Technology (VT-x): Yes

• Intel Virtualization Technology for Directed I/O (VT-d): Yes

• Intel VT-x with Extended Page Tables (EPT): Yes
