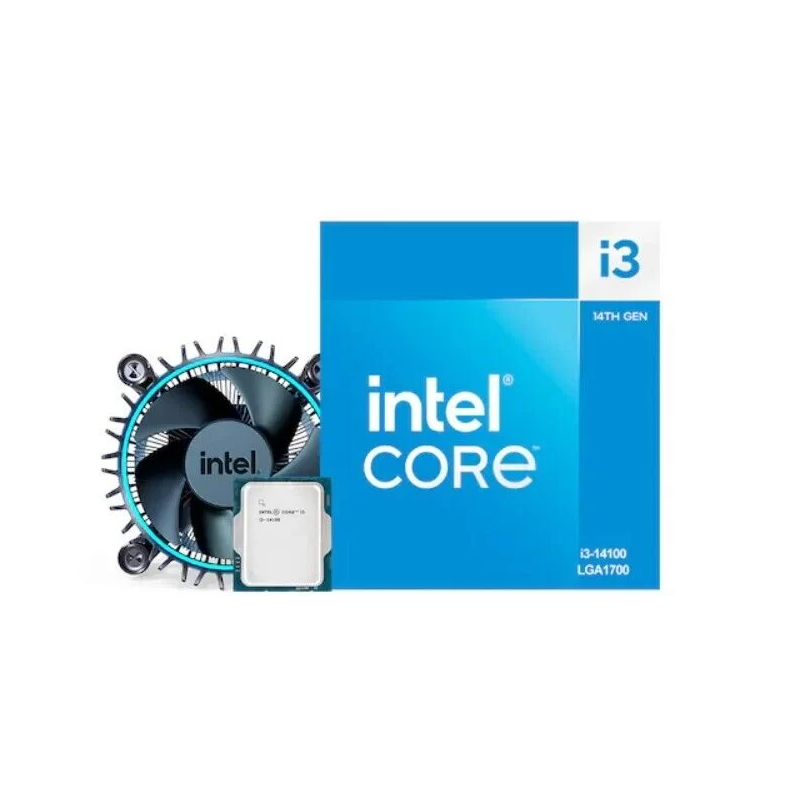

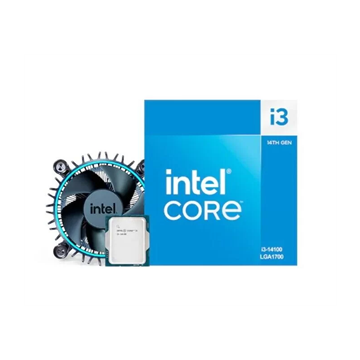

Core i3-14100 4 Cores / 8 Threads 20MB Cache LGA 1700 Build-in Graphics upto 4.7GHz Processor Boxed with Fan

Intel Core i3-14100 4 Core 4.7GHz LGA1700 Processor

Essentials:

• Product Collection: Intel Core i3 Processors (14th gen)


• Code Name: Products formerly Raptor Lake


• Vertical Segment: Desktop


• Processor Number: i3-14100


• Lithography: Intel 7


• Use Conditions: PC/Client/Tablet

CPU Specifications:

• Total Cores: 4


•


  of Performance-cores: 4





•


  of Efficient-cores: 0





• Total Threads: 8


• Max Turbo Frequency: 4.7 GHz


• Performance-core Max Turbo Frequency: 4.7 GHz


• Performance-core Base Frequency: 3.5 GHz


• Cache: 12 MB Intel Smart Cache


• Total L2 Cache: 5 MB


• Processor Base Power: 60 W


• Maximum Turbo Power: 110 W

Supplemental Information:

• Marketing Status: Launched


• Launch Date: Q1'24


• Embedded Options Available: Yes

Memory Specifications:

• Max Memory Size (dependent on memory type): 192 GB


• Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s


• Max # of Memory Channels: 2


• Max Memory Bandwidth: 76.8 GB/s

GPU Specifications:

• GPU Name: Intel UHD Graphics 730


• Graphics Max Dynamic Frequency: 1.5 GHz


• Graphics Output: eDP 1.4b, DP 1.4a, HDMI 2.1


• Execution Units: 24


• Max Resolution (HDMI): 4096 x 2160 @ 60Hz


• Max Resolution (DP): 7680 x 4320 @ 60Hz


• Max Resolution (eDP - Integrated Flat Panel): 5120 x 3200 @ 120Hz


• DirectX Support: 12


• OpenGL Support: 4.5


• OpenCL Support: 3.0


• Multi-Format Codec Engines: 1


• Intel Quick Sync Video: Yes


• Intel Clear Video HD Technology: Yes


•


  of Displays Supported: 4





• Device ID: 0x4692

Expansion Options:

• Direct Media Interface (DMI) Revision: 4.0


• Max # of DMI Lanes: 8


• Scalability: 1S Only


• PCI Express Revision: 5.0 and 4.0


• PCI Express Configurations: Up to 1x16+4, 2x8+4


• Max # of PCI Express Lanes: 20

Package Specifications:

• Sockets Supported: FCLGA1700


• Max CPU Configuration: 1


• Thermal Solution Specification: PCG 2020C


• TJUNCTION: 100°C

Advanced Technologies:

• Intel Gaussian & Neural Accelerator: 3.0


• Intel Deep Learning Boost (Intel DL Boost) on CPU: Yes


• Intel Speed Shift Technology: Yes


• Intel Turbo Boost Technology: 2.0


• Intel Hyper-Threading Technology: Yes


• Intel 64: Yes


• Instruction Set: 64-bit


• Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2


• Idle States: Yes


• Enhanced Intel SpeedStep Technology: Yes


• Thermal Monitoring Technologies: Yes


• Intel Volume Management Device (VMD): Yes

Security & Reliability:

• Intel Standard Manageability (ISM): Yes


• Intel Control-Flow Enforcement Technology: Yes


• Intel AES New Instructions: Yes


• Secure Key: Yes


• Intel OS Guard: Yes


• Execute Disable Bit: Yes


• Intel Boot Guard: Yes


• Mode-based Execute Control (MBEC): Yes


• Intel Virtualization Technology (VT-x): Yes


• Intel Virtualization Technology for Directed I/O (VT-d): Yes


• Intel VT-x with Extended Page Tables (EPT): Yes
