Product Code: 101126
Availability: In Stock
Status: Ex-Lease
Warranty: Three Months RTB Warranty
Manufacturer Url: https://www.juniper.net/us/en/products/switches/ex-series/ex2300-ethernet-switch-datasheet.html
Price: $199.00 gst Exclusive $228.85 gst Inclusive
EX2300-48P 48x GB Ports POE up to 750W 0/100/1000BASE-T Ethernet Switch Off-Leased 3 months Warranty
RRP $3299+gst
We tested all the ports networking and PoE function in good working condtion, 3 months RTB Warranty

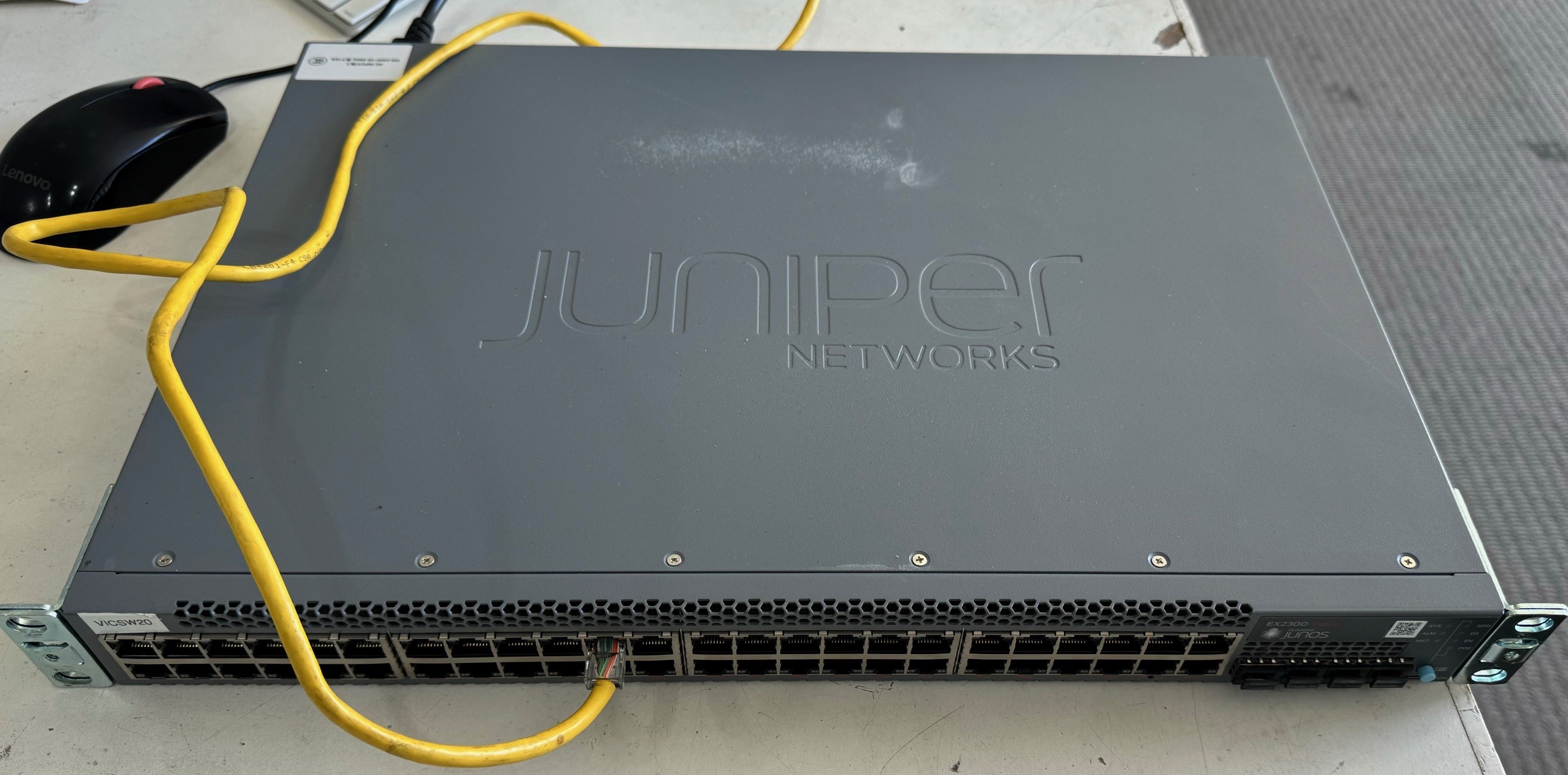

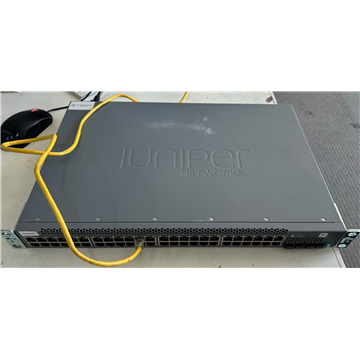

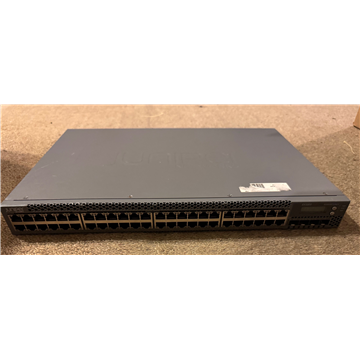

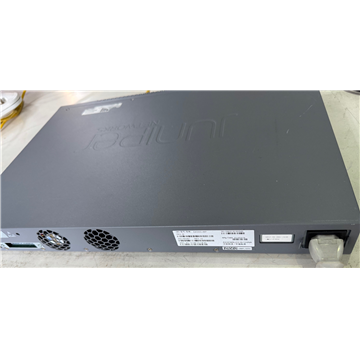

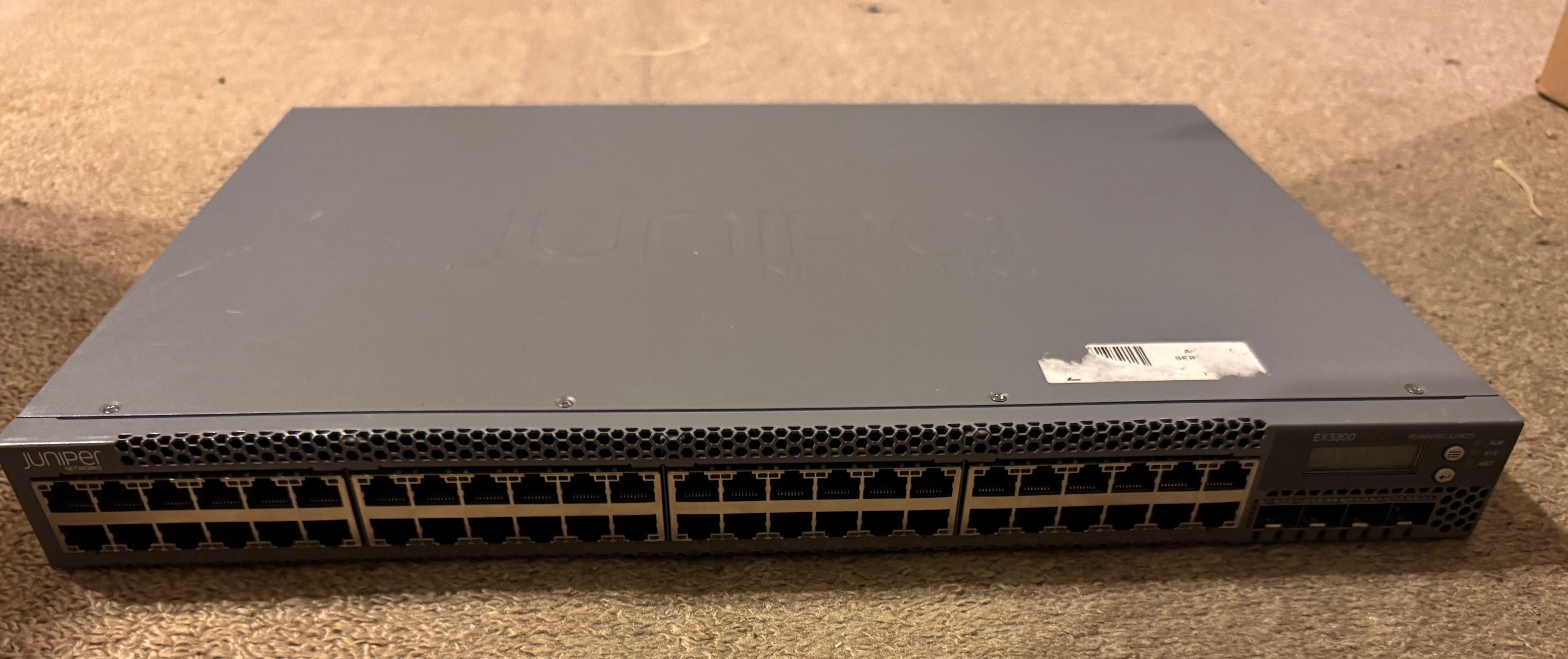

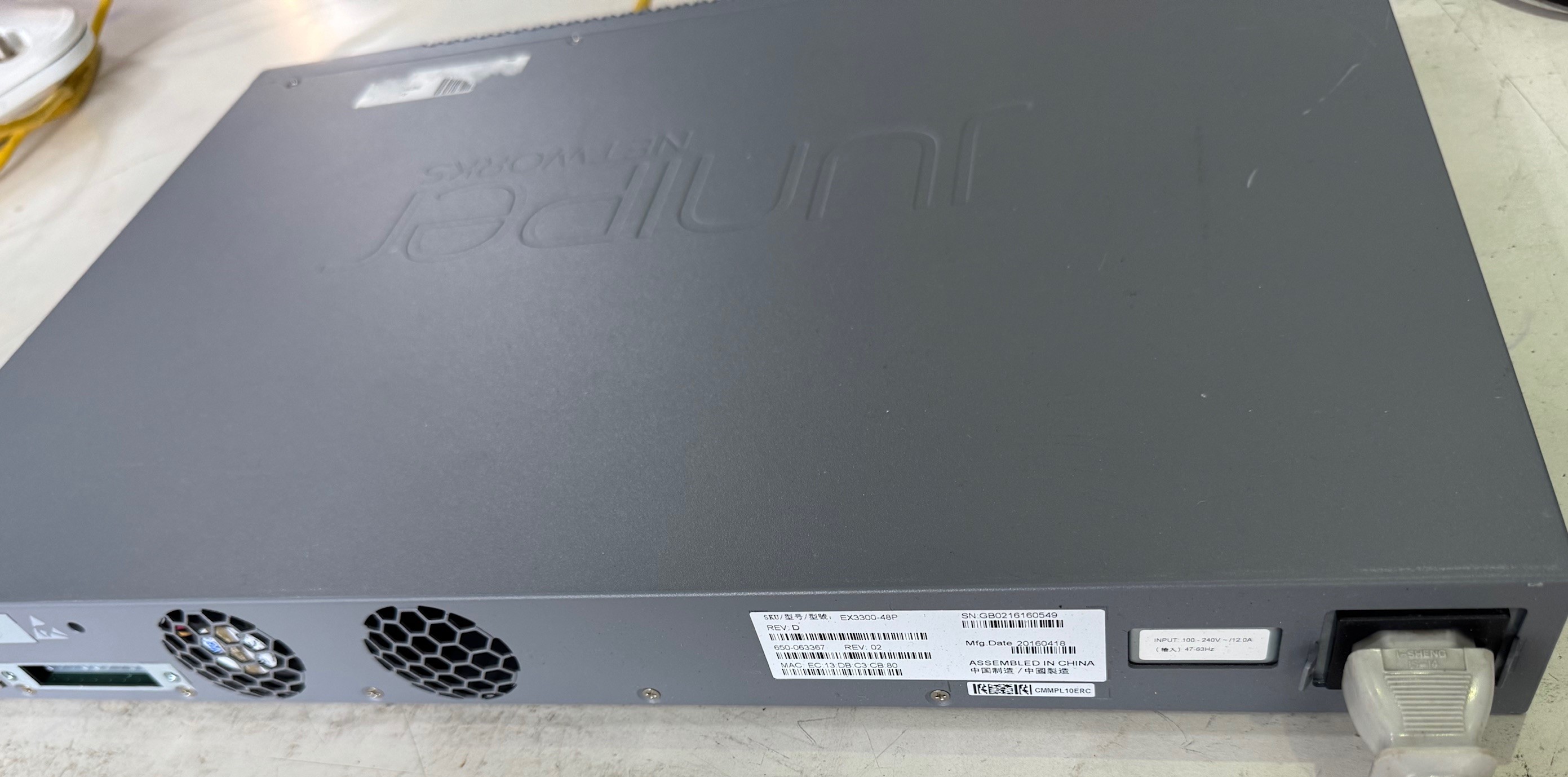

Comes with 1x power cable and a pair of attached Rack Mount Ears Brackets as per photo.
The EX2300 Ethernet switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small, 1U footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The EX2300 switch supports Juniper's Virtual Chassis technology, enabling up to four of the platforms to be interconnected and managed as a single, logical device. The switch can also serve as a satellite device in a Junos Fusion Enterprise deployment, which allows large numbers of access switches to be merged into a logical management platform.
General
Device Type
Switch - 48 ports - L3 - managed
Enclosure Type
Side to side airflow desktop, rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
740 W
Performance
Switching capacity: 176 Gbps ¦ Throughput: 130 Mbps ¦ Backplane speed: 80 Gbps
Capacity
QoS hardware queues per port: 8 ¦ Maximum number of concurrent sessions: 4 ¦ ARP entries: 1500 ¦ IPv4 route prefixes: 512 ¦ Host IPv4 routes: 4096 ¦ IPv4 routes (Multicast): 2048 ¦ Layer 3 multicast groups: 2048 ¦ IPv6 neighbor table entries: 1500 ¦ IPv6 route prefixes: 512 ¦ Host IPv6 routes: 2048 ¦ IPv6 routes (Multicast): 1024 ¦ Firewall egress filters: 256 ¦ Firewall ingress filters: 256 ¦ Access Control Entries (ACEs) per ACL: 2000 ¦ LAG groups: 128 ¦ Maximum member ports per LAG: 8 ¦ IGMP snooping entries: 2000 ¦ VSTP instances: 253 ¦ VLAN groups: 4093
MAC Address Table Size
16000 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
OSPF, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, MLDv2, MLD, CIDR
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, NTP
Encryption Algorithm
MD5, TLS, PEAP, TTLS
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features
Flow control, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, store and forward, High Availability, SNTP support, WRED, sFlow, STP support, RSTP support, VLAN Stacking, MSTP support, DHCP snooping, ACL support, QoS, IP Precedence, RADIUS support, DHCP server, MLD snooping, DHCP proxy, DAI, temperature sensor, RTG, PVST+, Cable Diagnostics Function, LACP support, DHCP relay, LACP, port based access control, port configuration, DHCP client, Energy Efficient Ethernet, MIB, MVRP, NDP, VSTP, NTP time synchronization, static routing, CoS, SP, tagged VLAN, Captive Portal, 802.1x authentication, EtherIP, VoIP support, DSCP support, SDWRR, UFD, system log, WTD, ICMP, ICMP Router Discovery Protocol (IRDP), SCP, Link Aggregation, MIB II, MAC address authentication, Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, DSCP Trust, DSCP Marking, traffic monitoring, Telnet server, Telnet client
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1BR
Processor
1 x ARM: 1.25 GHz
RAM
2 GB
Flash Memory
2 GB
Expansion / Connectivity
Interfaces
48 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10Gbit LAN SFP+ uplink ¦ 1 x mini-USB management
Power
Power Device
Internal power supply
Power Consumption Operational
100 Watt
Miscellaneous
Compliant Standards
TUV GS, CISPR 22 Class A, cUL, EN55024, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, EN 60825-1, ISO 7779, EN 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition, CB 60950-1, AS/NZS CISPR22 Class A, EN 300386
Dimensions & Weight
Width
17.4 in
Depth
12.2 in
Height
1.8 in
Weight
11.07 lbs
Manufacturer Warranty
Service & Support
Limited warranty - lifetime ¦ New releases update - lifetime ¦ Technical support - 90 days
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 85% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
0 - 95% (non-condensing)
