Antec Part No. CFAN-ANT-VO240

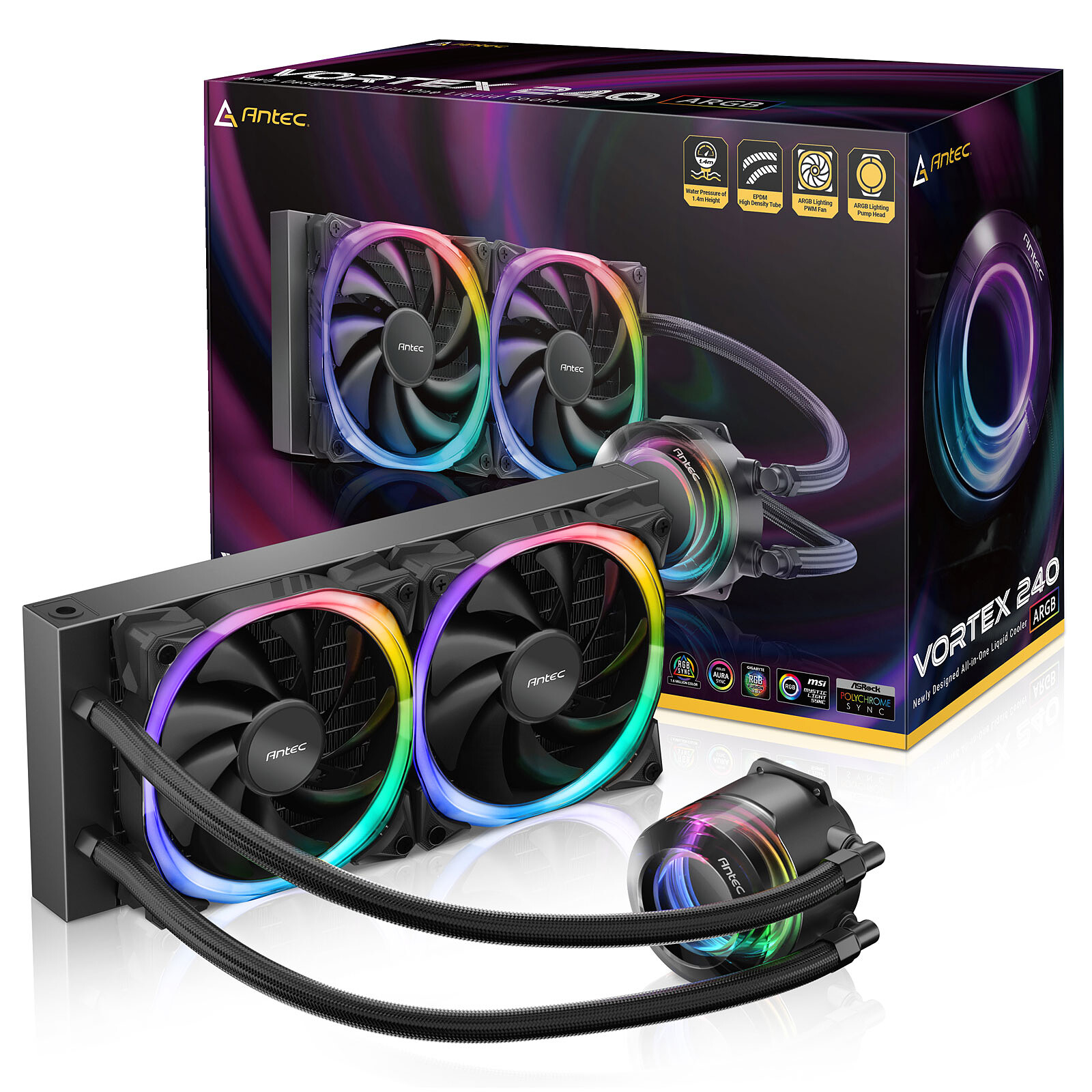

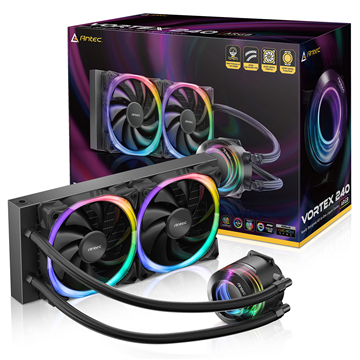

Antec Vortex240 ARGB CPU Liquid Cooler - Black

The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

Features:

Highly Efficient Cooling Pump:

Performance data tested with Vortex 360 on AMD Ryzen 5600x



EPDM High-Density Tubing:

The EPDM high-density tubing is very durable, making less loss of liquid.



Superior Fin Density:

Massive 13 fins dissipate heat rapidly.



Antec Fusion PWM ARGB Fan:

The Vortex 240 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.



Included ARGB Controller Working in Sync with the Motherboard:

The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.

Specifications:

Radiator:

• Radiator Dimensions: 277 x 120 x 27 mm

• Radiator Material: Aluminum



Pump:

• Dimensions: ￠67 x 48.5 mm

• Rating Voltage: DC 12 V

• Minimum Startup Voltage: ≥ 5.0 V

• Fan Speed: 2800±10% RPM

• Rated Current: 0.25±20% A

• Consumed Power: 3.0 W

• Flow rate: ≥ 1300 mL / min

• Water Pressure: 1.4M

• Operation Temperature: -10°C ~ +60°C

• Noise Level: ≤ 28 dB(A)

• Lifespan: 40,000 hours

• Connector: PUMP: 3-pin | LED: 3-pin



Fan:

• Model Name: Fusion 120 ARGB fan (AH12012FM1)

• Fan Type: PWM Fan

• Dimensions: 120 x 120 x 25 mm

• Bearing Type: Hydraulic Bearing

• LED Type: Addressable RGB

• Fan Speed: 600±200 ~ 2000±10% RPM

• Airflow: 57.93 CFM (max.)

• Air Pressure: 2.11 mmH₂O (max.)

• Fan Noise Level: 31.24 dB(A)

• Lifespan: 40,000 hours

• Connector: FAN: 4-pin PWM | LED: 3-pin

• Rated Voltage: FAN: DC 12 V | LED: DC 5 V

• Operation Voltage: FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V

• Rated Current: FAN : ≤ 0.21 A | LED : ≤ 0.58 A

• Socket Compatibility CPU: Intel: LGA 115X / 1200 / 1700 / 20XX; AMD: AM3/AM4/AM5
