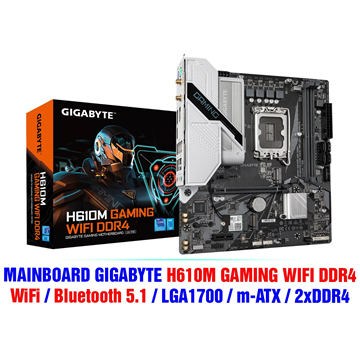

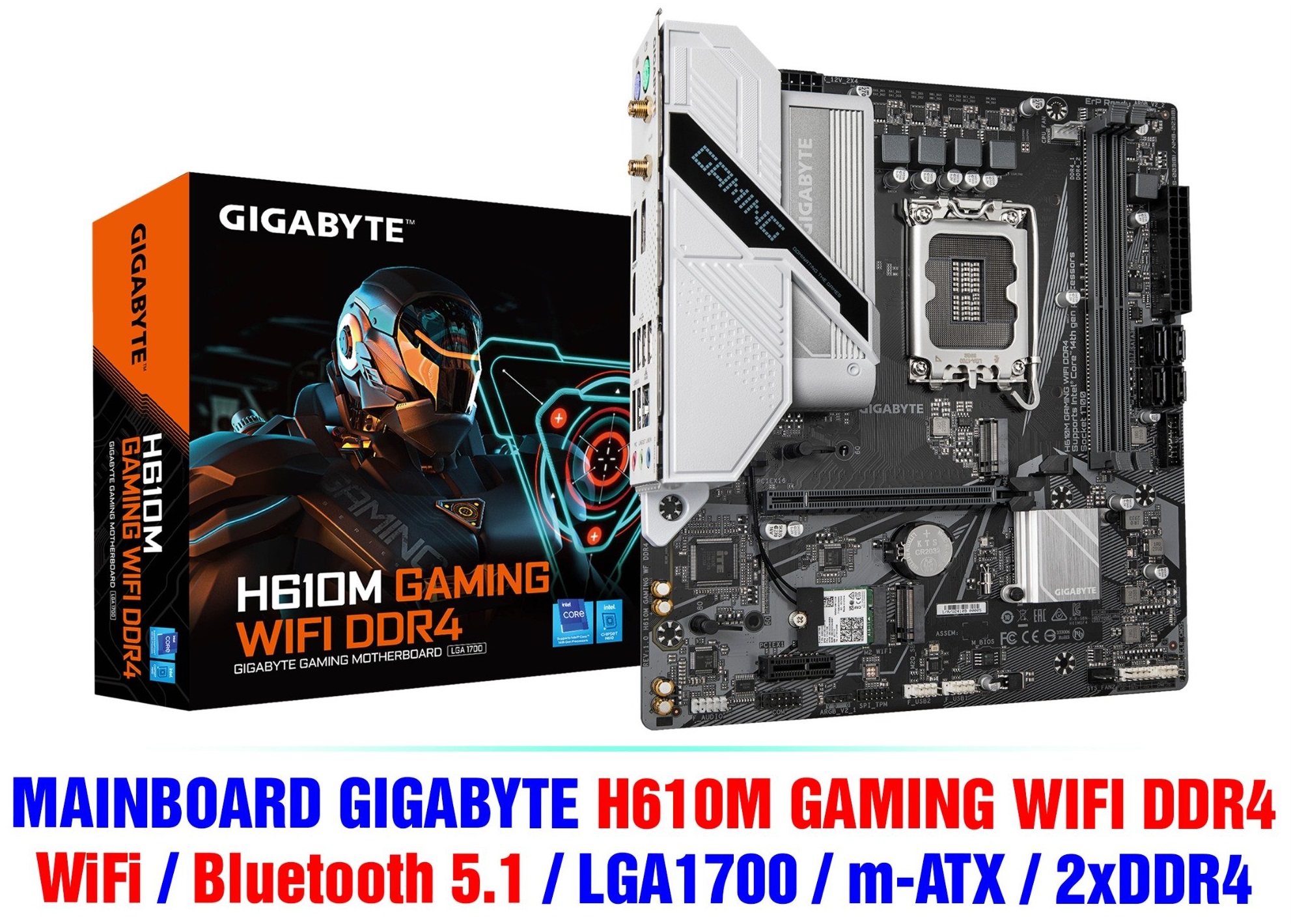

GAMING WIFI DDR4 LGA1700 2x DDR4 1xM.2 1xHDMI 2xDP MicroATX Motherboard

H610M GAMING WIFI DDR4

• Supports Intel® Core™ 14th/ 13th /12th processors


• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs


• 6+1+1 Hybrid Digital VRM Design


• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design


• Fast Networks：Wi-Fi 802.11ac & GbE LAN


• NVMe PCIe 3.0 x4 M.2


• High Quality Audio Capacitors and Audio Noise Guard


• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

The Gigabyte H610M Gaming WiFi DDR4 motherboard supports Intel Core 14th/13th/12th processors, features Dual Channel DDR4, 6+1+1 Hybrid Digital VRM, PCIe 4.0x16, Wi-Fi 802.11ac & GbE LAN, NVMe PCIe 3.0 x4 M.2, and Smart Fan 6 for efficient cooling, ensuring durable performance, future connectivity, and user-friendly experience.

Features:

• Supports Intel Core 14th/ 13th /12th processors

• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

• 6+1+1 Hybrid Digital VRM Design

• EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design

• Fast Networks：Wi-Fi 802.11ac & GbE LAN

• NVMe PCIe 3.0 x4 M.2

• High Quality Audio Capacitors and Audio Noise Guard

• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

Specifications:

CPU:

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors



Chipset:

• Intel H610 Express Chipset



Memory:

• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules



Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support:

• 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz



Audio:

• Realtek Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel



LAN:

• Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)



Wireless Communication module: Intel Wireless- AC 9560 (PCB rev. 1.0):

• WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band

• BLUETOOTH 5.1

• Support 11ac 160MHz wireless standard



Expansion Slots:

• CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

• Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



Storage Interface: Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) (M2P_SB)

• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support) (M2Q_SB)

• 4 x SATA 6Gb/s connectors



USB:

• Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header); 2 x USB 2.0/1.1 ports available through the internal USB header

• Chipset+2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)



Internal I/O Connectors:

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 2 x system fan headers

• 2 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 2 x addressable RGB Gen2 LED strip headers

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

• 1 x serial port header

• 1 x Clear CMOS jumper



Back Panel Connectors:

• 1 x PS/2 keyboard port

• 1 x PS/2 mouse port

• 2 x SMA antenna connectors (2T2R)

• 2 x DisplayPorts

• 1 x HDMI port

• 2 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 3 x audio jacks



I/O Controller:

• iTE I/O Controller Chip



Operating System:

• Support for Windows 11 64-bit

• Support for Windows 10 64-bit



Form Factor:

• Micro ATX Form Factor; 24.4cm x 22.0cm
