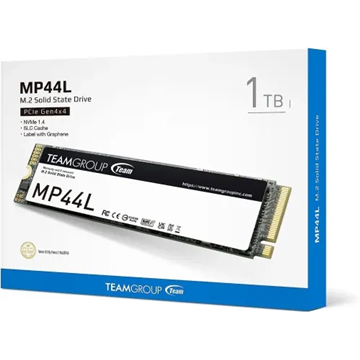

MP44L 1TB SLC CACHE NVMe 1.4 PCIe Gen 4x4 M.2 2280 SSD R/W 5000/4500 MB/s

Mft Part#: TM8FPK002T0C101

TEAMGROUP MP44L M.2 PCIe SSD adopts the PCIe Gen4x4 interface. Compared with the PCIe Gen3, the performance is more than doubled. The read/write speeds reach up to 5,000 / 4,500MB/s, drastically improving work efficiency. It is the first product to incorporat a heat sink label using a unique graphene coating on aluminum foil to further upgrade heat dissipation performance. It supports the S.M.A.R.T. monitoring software, Windows TRIM optimization option, and LDPC technology simultaneously. In addition, the five-year warranty that guarantees durability and reliability makes MP44L M.2 PCIe SSD your best option for an upgrade.

Main Feature

• Heat dissipating graphene SSD label.

• Supporting SLC Cache enhancing work efficiency drastically.

• Diversified optimization technology for stability, durability, and enhanced reliability.

• Supporting the latest NVMe standards

• S.M.A.R.T monitoring software.

• Trustworthy and reliable five-year warranty

Specification

Interface PCIe 4.0 x4 with NVMe

Capacity 1TB

Voltage DC +3.3V

Operation Temperature 0˚C ~ 70˚C

Storage Temperature -40˚C ~ 85˚C

DRAM Cache  NO

Terabyte Written 2TB：1200TBW

Performance

Crystal Disk Mark:

1TB Read/Write：up to 5000 / 4500MB/s

IOPS:

1TB Read/Write：up to 525K / 550K

Weight 7g

Dimensions 80(L) x 22(W) x 2.25(H) mm

Humidity RH 90% under 40°C (operational)

Vibration 80Hz~2,000Hz/20G

Shock 1,500G/0.5ms

MTBF 1,500,000 hours

Operating System

Compatible with Intel and AMD platforms and has one

of the following operating systems:

• Windows 11/ 10 / 8 / 7 / Vista or later

• Linux 2.6.33 or later
