Antec Vortex 360 ARGB Fans CPU AIO Liquid Cooler 3x120mm

Brand: Antec
Product Code: 100790
Availability: In Stock
Status: Brand New
Warranty: One Year RTB Warranty
Manufacturer Url: https://www.antec.com/product/cooling/vortex360-argb

Price: $199.00 gst Inclusive $173.04 gst Exclusive

Call us: 09-826 5568

Vortex 360 3x120mm ARGB Fans CPU AIO Liquid Cooler

Manufactured Model: 0-761345-74047-0

DESCRIPTION

Antec Vortex 360 ARGB  water cooling system



VORTEX 360

The Epoch-Making All in One ARGB CPU Liquid Cooler

Suspended Spiral
Pump Head Design

The suspended spiral pump head inspired by the image of a vortex provides outstanding cooling performance and various lighting effects from different angles.

Highly Efficient Cooling Pump

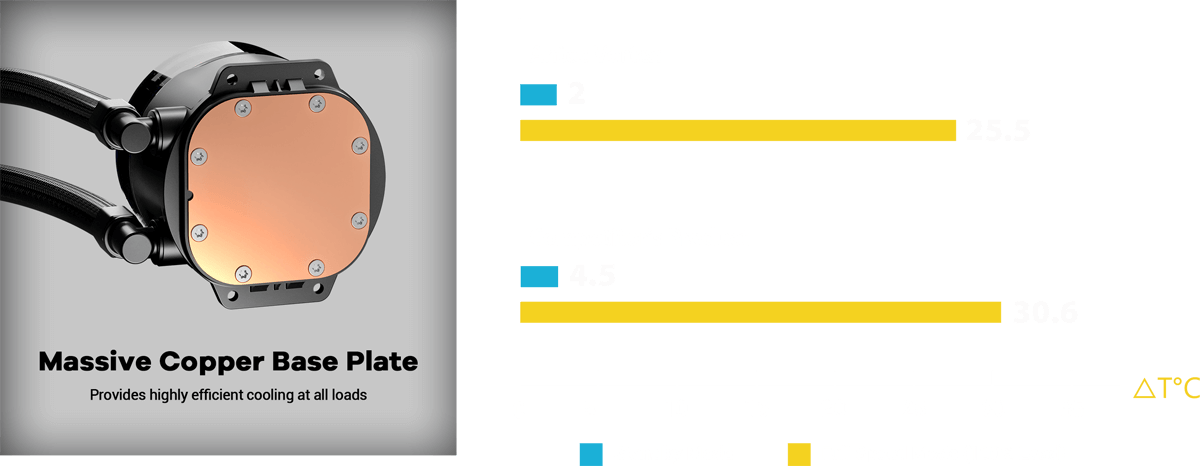

HIGH PERFORMANCE COOLING

Performance data tested with Vortex 360 on AMD Ryzen 5600x

EPDM High-Density Tubing

The EPDM high-density tubing is very durable, making less loss of liquid.

Superior Fin Density

Massive 13 fins dissipate heat rapidly.

Antec Fusion PWM ARGB Fan

The Vortex 360 ARGB adopted the Antec Fusion PWM ARGB Fan with a unique multilateral-shaped lighting frame with 16 LEDs projecting the most harmonious lighting effects and providing more powerful cooling for the CPU.

Included ARGB Controller Working
in Sync with the Motherboard

The included ARGB controller works with the motherboard, customizing each individual LED in color and effect.



Package

SPECIFICATIONS

Radiator
Radiator Dimensions 397 x 120 x 27 mm
Radiator Material Aluminum
Tdp Number
Vortex360 280W
Pump
Dimensions ¢67 x 48.5 mm
Rating Voltage DC 12 V
Minimum Startup Voltage ≥ 5.0 V
Fan Speed 2800±10% RPM
Rated Current 0.25±20% A
Consumed Power 3.0 W
Flow rate ≥ 1300 mL/min
Water Pressure 1.4M
Operation Temperature -10°C ~ +60°C
Noise Level ≤ 28 dB(A)
Lifespan 40,000 hours
Connector PUMP: 3-pin | LED: 3-pin
Fan
Model Name Fusion 120 ARGB fan (AH12012FM1)
Fan Type PWM Fan
Dimensions 120 x 120 x 25 mm
Bearing Type Hydraulic Bearing
LED Type Addressable RGB

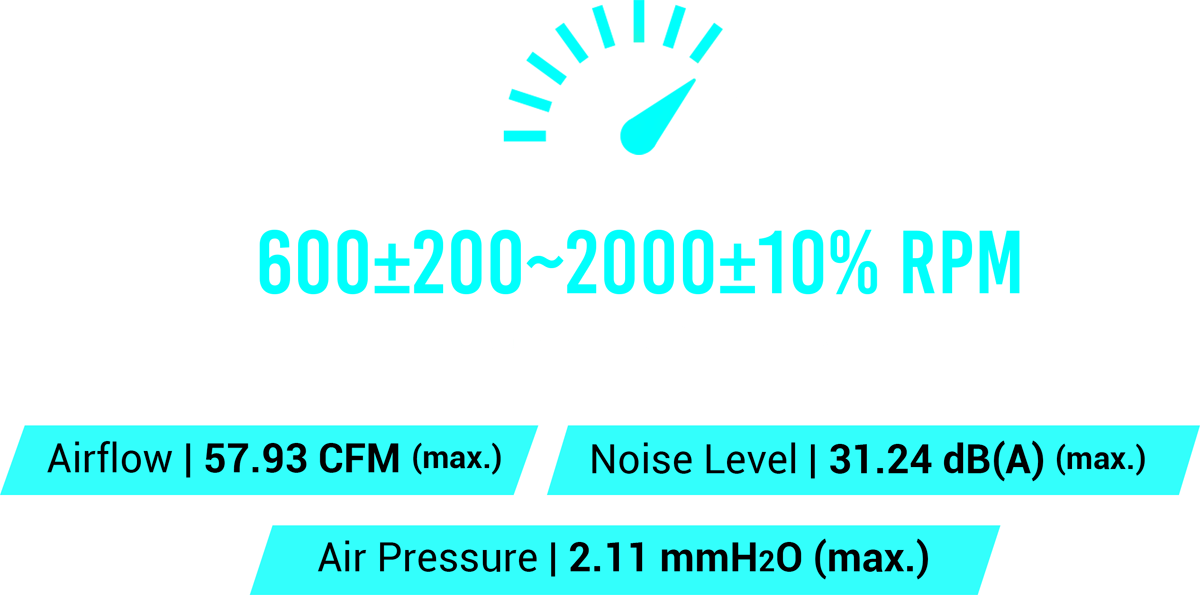

Fan Speed 600±200 ~ 2000±10% RPM
Airflow 57.93 CFM (max.)
Air Pressure 2.11 mmH₂O (max.)
Fan Noise Level 31.24 dB(A)
Lifespan 40,000 hours
Connector FAN: 4-pin PWM | LED: 3-pin
Rated Voltage FAN: DC 12 V | LED: DC 5 V
Operation Voltage FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V
Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A
Socket Compatibility CPU Intel : LGA 115X / 1200 / 1700 / 20XX
AMD : AM3 / AM4 / TR4 / AM5
Warranty one year
UPC# 0-761345-74047-0
