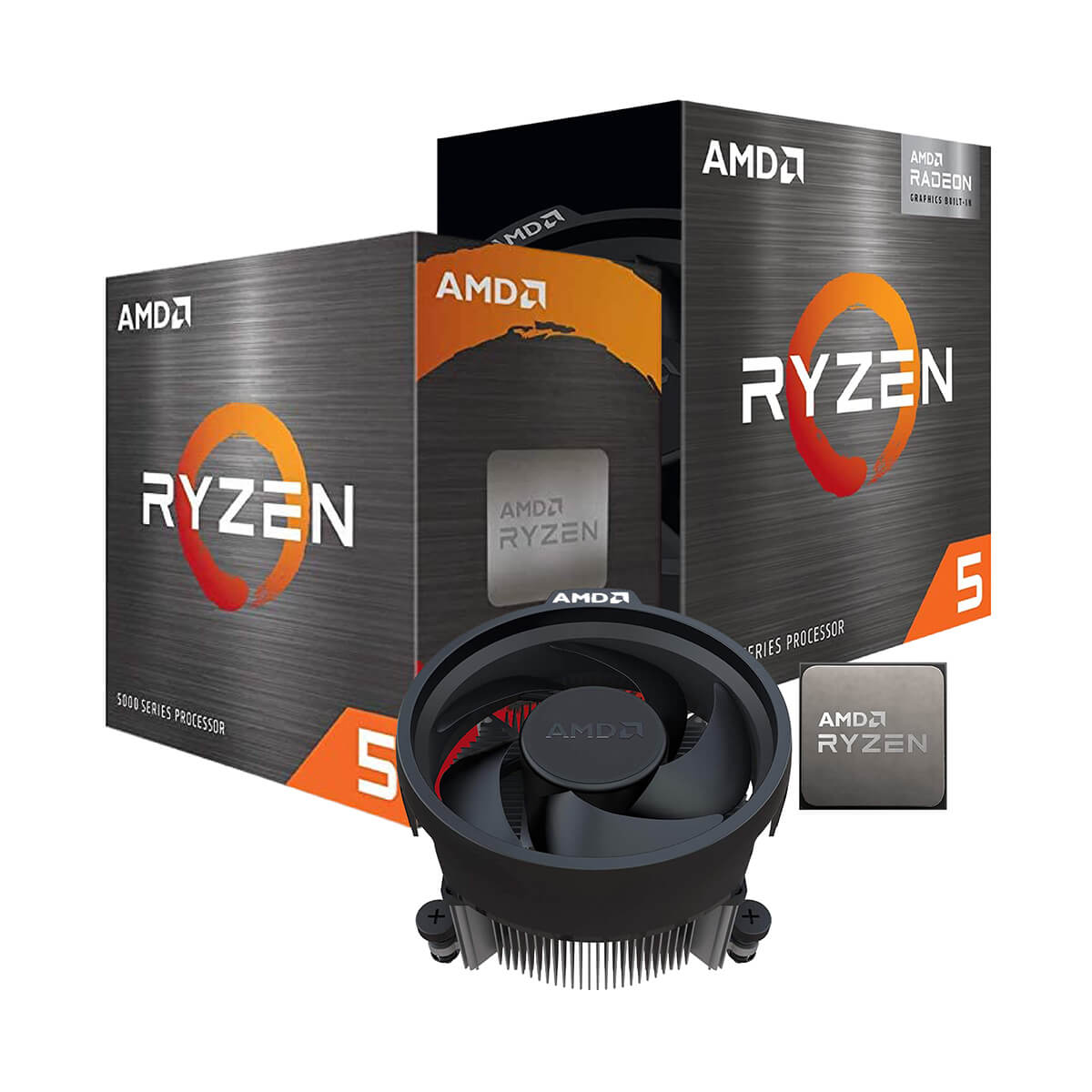

MPN: 100-100000252BOX

AMD Ryzen™ Desktop Processors with AMD Radeon™ Graphics

For gamers, creators, and all-around PC users who want enthusiast-class performance; without the need for a discrete graphics card - look no further than Ryzen™ 5000 G-Series Desktop Processors - The Ultimate Desktop Processor with Graphics.

Power Your Next GG

Get PCs powered by the world's most advanced processors[1] for high frame rates per second and an immersive experience. Good game, indeed.

Ultra-Responsive

Get a PC with the performance you need with up to 8 cores fueled by the world's most advanced 7nm processor core technology.[1] With these processors delivering a generational leap in performance over the previous gen,[2] the AMD Ryzen™ 5000 G-Series Desktop Processors with Radeon™ Graphics deliver ultra-fast responsiveness and multi-threaded performance for mainstream PCs.

The Most Advanced Technology

Count on a PC that's fast, efficient, and reliable with the world's most advanced 7nm processor core technology[1] at the heart of your system. AMD Ryzen™ 5000 G-Series Desktop Processors with Radeon™ Graphics are designed with industry-leading 7nm process "Zen 3" processor technology for faster, efficient processing to get it all done, faster than ever before, while running cool and quiet.

The World's Fastest Graphics in a Desktop Processor.[3]

Be immersed in every detail as you edit photos and videos, get amazingly smooth HD gaming, and stream your favorite shows in vibrant 4K, HDR. AMD Ryzen™ 5000 G-Series Desktop Processors deliver the fastest graphics performance available in a desktop processor3 with AMD Radeon™ Graphics built right in. Enjoy smooth, 1080P gaming right out of the box, no additional graphics card required; and an easy path to future upgrades like graphics cards for HD+ gaming when you're ready.

[1] Most Advanced is defined as 7nm process technology and AMD "Zen 3" core as of October 2020. R5K-040

[2] Testing by AMD Performance Labs as of March 4, 2021 using a Ryzen 7 5700G with an AMD Reference motherboard, AMD Wraith Prism cooler, integrated graphics, 2x8GB DDR4 configured at manufacturer's maximum supported memory speed, 512GB SSD, and Windows 10 vs a similarly configured system with an AMD Ryzen 7 4700G. Results may vary. R5K-059

[3] Testing by AMD Performance Labs as of March 4, 2021 using a Ryzen 7 5700G, Ryzen 5 5600G and Ryzen 3 5300G vs Intel Core i7-10700, Core i5-10600 and Core i3-10300 in 3DMark Time Spy using integrated graphics. Results may vary with configuration. R5K-070

Motherboard BIOS updates may be required, you can get in touch with the ExtremePC services team via email: support@extremepc.co.nz

Specifications

AMD Ryzen™ 5 5600G

# of CPU Cores

6

# of Threads

12

# of GPU Cores

7

Base Clock

3.9GHz

Max Boost Clock

Up to 4.4GHz

Total L2 Cache

3MB

Total L3 Cache

16MB

Unlocked

Yes

CMOS

TSMC 7nm FinFET

Package

AM4

PCI Express® Version

PCIe® 3.0

Thermal Solution (PIB)

Wraith Stealth

Default TDP / TDP

65W

cTDP

45-65W

Max Temps

95°C

*OS Support

Windows 10 - 64-Bit Edition

RHEL x86 64-Bit

Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

System Memory

System Memory Specification

Up to 3200MHz

System Memory Type

DDR4

Memory Channels

2

Graphics Specifications

Graphics Frequency

1900 MHz

Graphics Model

Radeon™ Graphics

Graphics Core Count

7
