MPN: KVR32N22S8/16

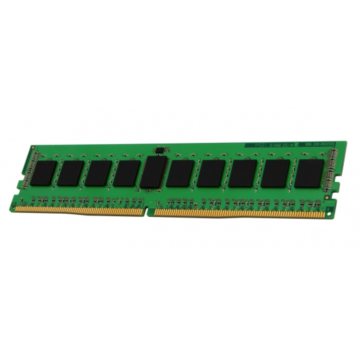

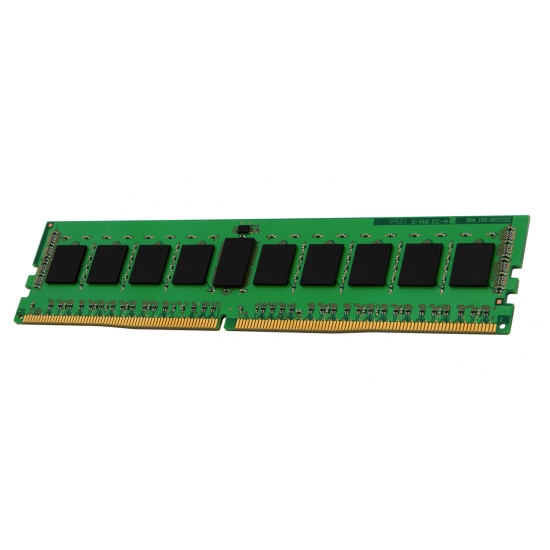

ValueRam KVR32N22S8/16 16GB DDR4 3200MHz CL22 1.2V DIMM Single Modular

Specs:

This document describes ValueRAM's KVR26N19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

- Power Supply: VDD=1.2V Typical

- VDDQ = 1.2V Typical

- VPP - 2.5V Typical

- VDDSPD=2.2V to 3.6V

- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals

- Low-power auto self refresh (LPASR)

- Data bus inversion (DBI) for data bus

- On-die VREFDQ generation and calibration

- Dual-rank

- On-board I2 serial presence-detect (SPD) EEPROM

- 16 internal banks; 4 groups of 4 banks each

- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)

- Selectable BC4 or BL8 on-the-fly (OTF)

- Fly-by topology

- Terminated control command and address bus

- PCB: Height 1.23" (31.25mm)

- RoHS Compliant and Halogen-Free
