Mft Part#: HX432C16FB3AK2/32

Limited Lifetime Warranty Return To Base

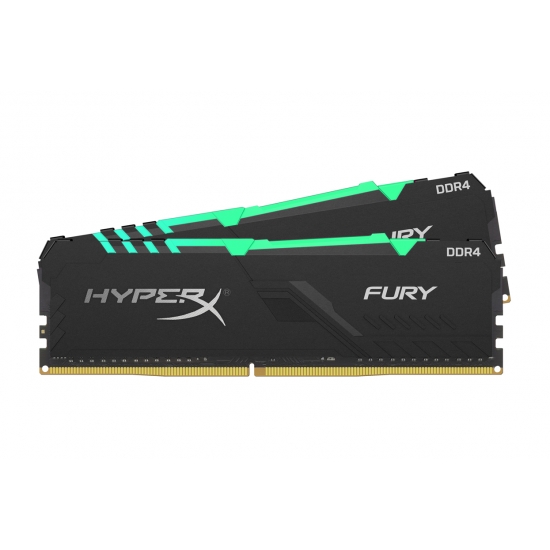

HX432C16FB3AK2/32 32GB (16GB 2G x 64-Bit x 2 pcs.)

HyperX HX432C16FB3AK2/32 is a kit of two 2G x 64-bit (16GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 32GB. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR4-2400 CL17-17-17 @1.2V


• XMP Profile #1: DDR4-3200 CL16-18-18 @1.35V


• XMP Profile #2: DDR4-3000 CL15-17-17 @1.35V

Features

• Power Supply: VDD = 1.2V Typical


• VDDQ = 1.2V Typical


• VPP = 2.5V Typical


• VDDSPD = 2.2V to 3.6V


• On-Die termination (ODT)


• 16 internal banks; 4 groups of 4 banks each


• Bi-Directional Differential Data Strobe


• 8 bit pre-fetch


• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)


• Height 1.624” (41.24mm), w/heatsink
