Product Information :

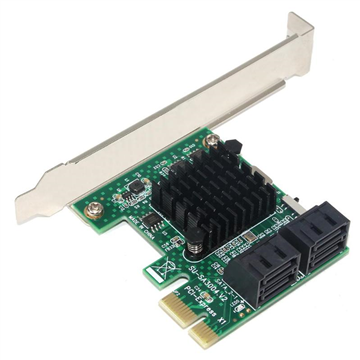

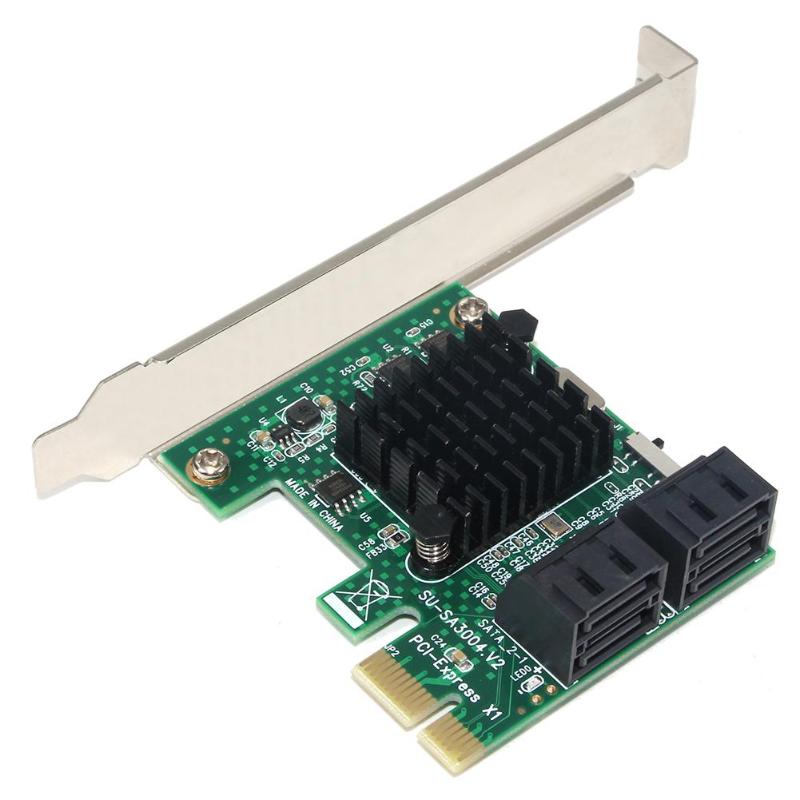

SSU SA3004 4 Port 6G PCI-E to SATA3.0 Expansion Adapter Card

Feature:

1. With large heat sink, heat dissipation is better.

2. The design of the rear four ports is more convenient to wire.

3. Rear four port design, suitable for all kinds of chassis.

4. The design of the tail edge, and the probability of blocking the card player is smaller.

5. The four layer circuit board, with the addition of isolation layer in the middle, has stronger anti-interference capability.

6. Original mode selection, AHCL, IDE, data disk, three modes are free to choose.



The three mode can be selected by pulling the switch:

1. Hard disk boot system in AHQ mode.

2. Data disk mode, hard disk does not participate in boot (at the same time can turn off self-test interface).

3. Hard disk boot system in IDE mode.



Specification:

Brand: SSU

Model: SA3004

Bus interface: PCI-EX1 (compatible with X4, X8, X16/ graphics card interface)

Number of interfaces: SATA3.0 interface X4

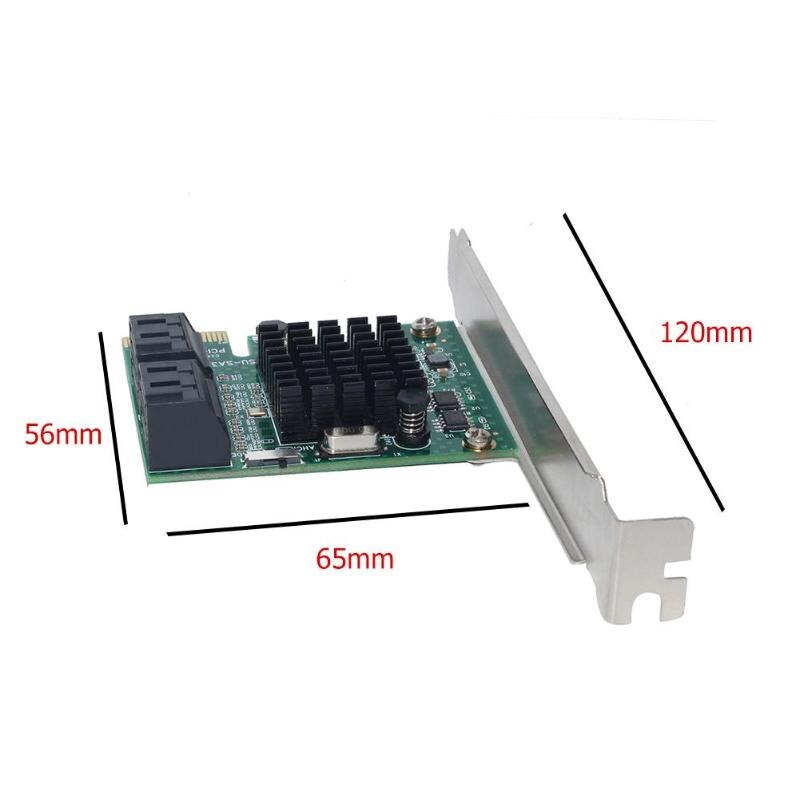

Product size: 120mm (baffle) *65mm*56mm/4.72*2.55*2.2''

Product weight: 70g

System support: support for Windows XP/2003/ Vista/win7/in8/win10 (32/64bit) operating system.

Accessories:

1 x 1xPCIe  Adapter Card

Connectors:

* 4 x internal SATA connectors

One Year RTB Warranty
