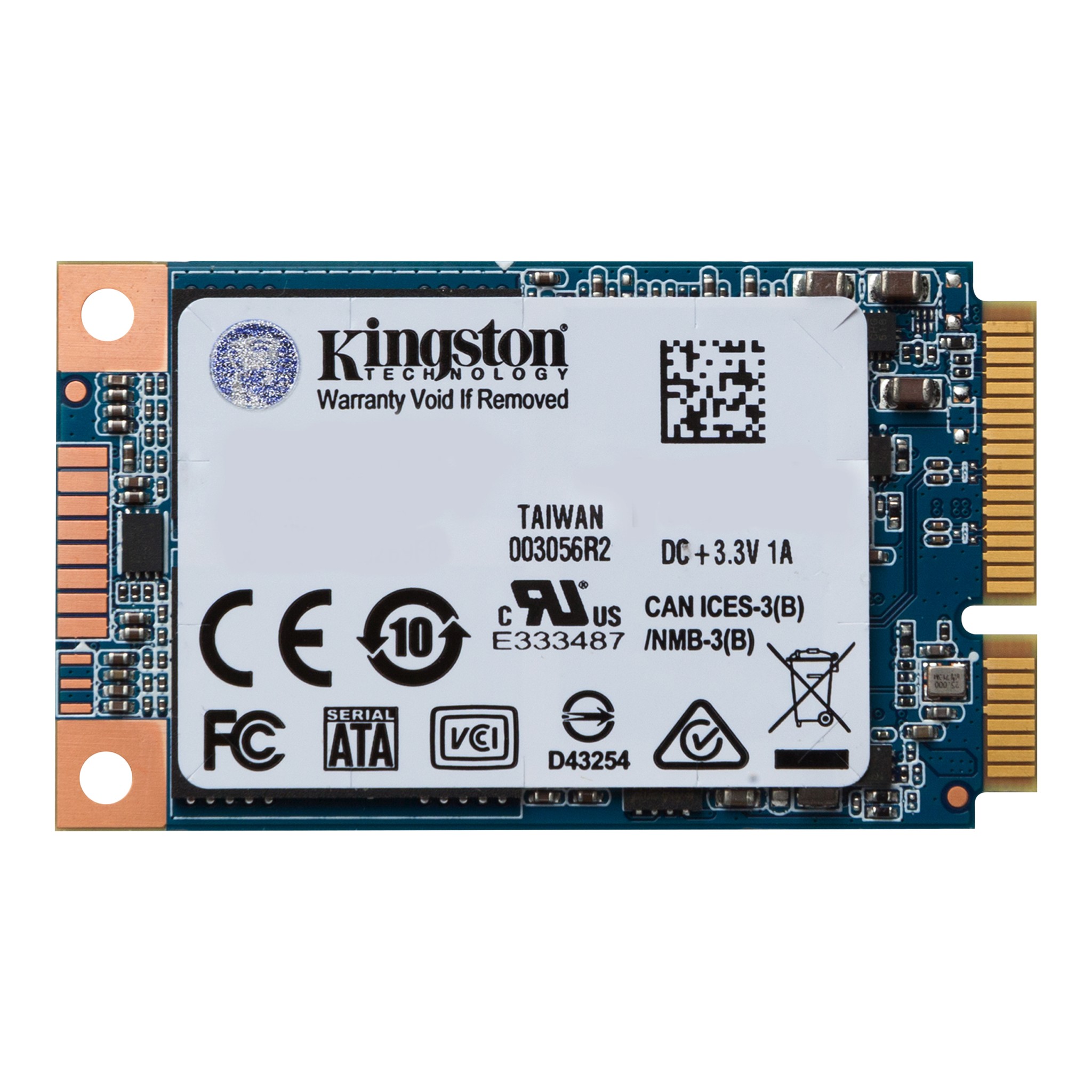

UV500 SATA SSDUV500 SATA SSD ­Self-Encrypting SSD in mSATA

Kingston’s UV500 SSD dramatically improves your system’s responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500’s available in multiple capacities from 120GB–480GB¹ giving you options to meet your system’s needs.

• Next-Gen 64-layer, 3D TLC NAND

• AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0

• 10X faster than a 7200RPM hard drive²

• Multiple capacities up to 480GB¹

• GDPR Ready^*

• 3 year swarranty³

This SSD is designed for use in desktop and notebook computer workloads and is not intended for Server environments.

* Product serves as an element within a managed security solution toward compliance. Product itself does not warrant GDPR compliance.

1. Some of the listed capacity on a Flash storage device is used for formatting and other functions and thus is not available for data storage. As such, the actual available capacity for data storage is less than what is listed on the products. For more information, go to Kingston's Flash Memory Guide.

2. Based on “out-of-box performance” using a SATA Rev 3.0 / PCIe 3.0 motherboard. Speed may vary due to host hardware, software, and usage. IOMETER Random 4K Read/Write is based on 8GB partition.

3. Limited warranty based on 3 years or “SSD Life Remaining” which can be found using the Kingston SSD Manager. A new, unused product will show a wear indicator value of one hundred (100), whereas a product that has reached its endurance limit of program erase cycles will show a wear indicator value of one (1). See Kingston.com/wa for details.

Specifications
