Usage Application

Client PCs

Interface

PCIe Gen 3.0 x4, NVMe 1.4

Hardware Information

Capacity 1)

1TB

Controller

Samsung in-house Controller

NAND Flash Memory

Samsung V-NAND 3bit MLC

DRAM Cache Memory

-

Dimension

Max 80.15 x Max 22.15 x Max 2.38 (mm)

Form Factor

M.2 (2280)

Performance2) 3)

Sequential Read

up to 3,500 MB/s

Sequential Write

up to 3,000 MB/s

QD1 Thread 1 - Random Read

up to 17K IOPS

QD1 Thread 1 - Random Write

up to 54K IOPS

QD 32 Thread 16 - Random Read

up to 500K IOPS

QD 32 Thread 16 - Random Write

up to 480K IOPS

Power Consumption 4)

Idle (ASPT on)

up to 45mW

Active (Average) - Read

up to 4.5 W

Active (Average) - Write

up to 4.6 W

L1.2 mode

up to 5 mW

Reliability

Temperature - Operating

0°C to 70°C (Measured by S.M.A.R.T. Temperature. Proper airflow recommended)

Temperature - Non-Operating

-40°C to 85°C

Humidity

5% to 95% non-condensing

Shock - Non-Operating

1,500G(Gravity), durationL 0.5ms, 3 axis

Vibration - Non-Operating

20~2,000Hz, 20G

MTBF

1.5 million hours

Other

Supporting Features

TRIM (Required OS support), Garbage Collection, S.M.A.R.T.

Data Security

AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

Model Name

MZ-V8V1T0

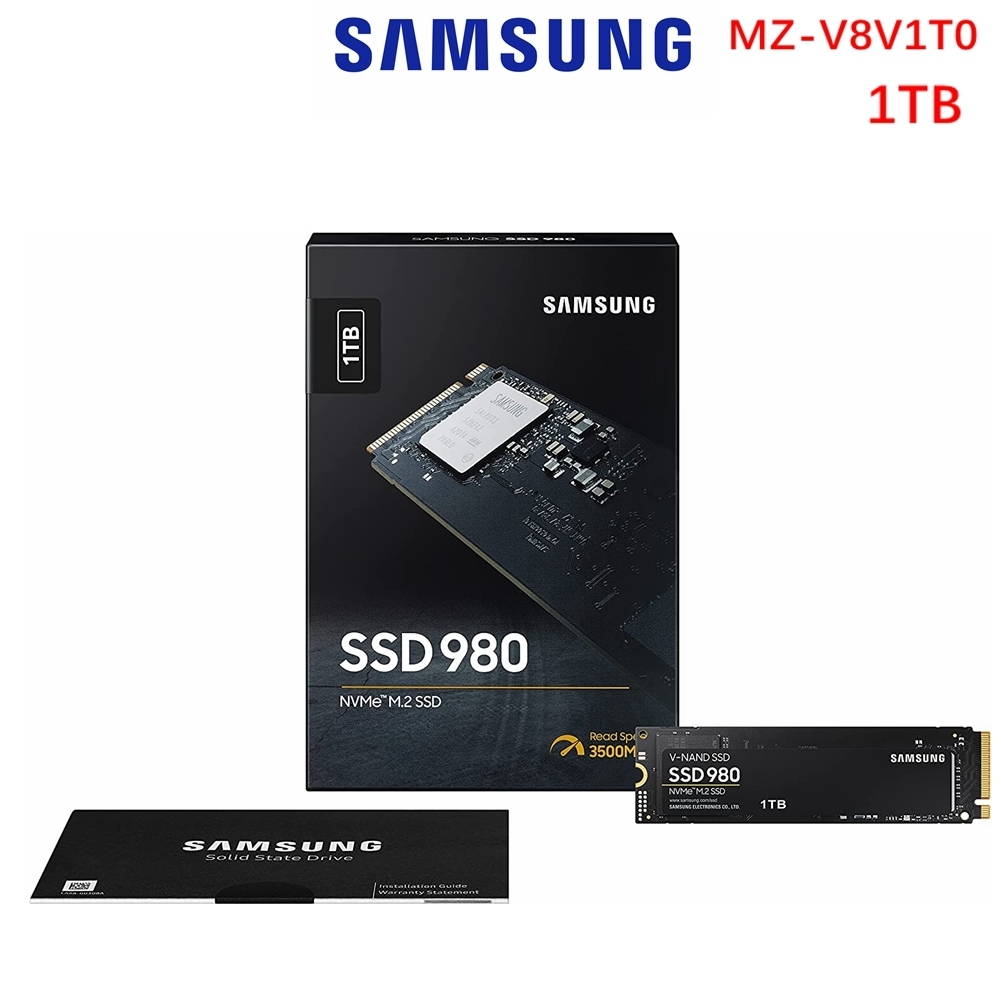

Box Contents

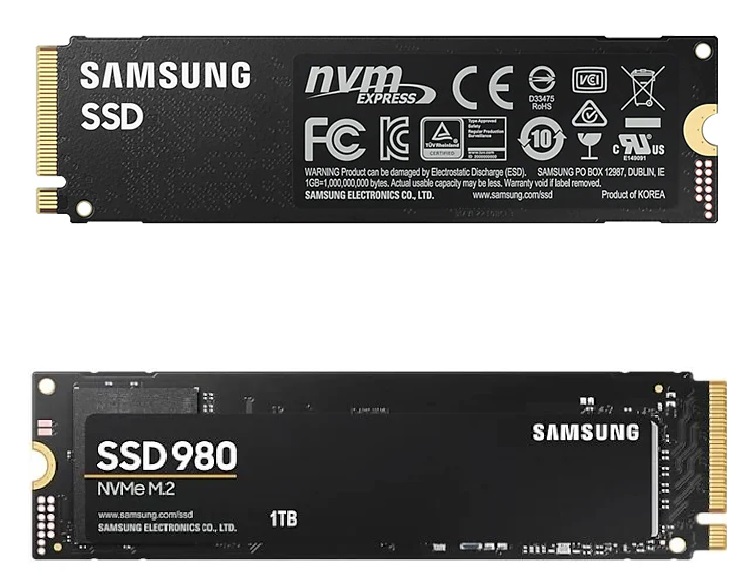

Samsung SSD 980 1TB

Warranty Statement

Notes

1) 1GB = 1,000,000,000 bytes by IDEMA. A certain portion of capacity may be used for system file and maintenance use, thus the actual available capacity may differ from the labeled capacity.

2) Sequential and random performance measurements are based on IOmeter1.1.0. Performance may vary based on SSD's firmware version, system hardware & configuration. Test System: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz, DDR4 2133MHz 8GBx2 OS-Windows 10 Pro 64bit Asrock Z-170 Extreme7+

3) Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.

4) Power consumption is measured with IOmeter1.1.0 version with AMD Ryzen 7 3700X 8 Core @3.6GHz, DDR4 8GBx2, OS-Windows 10 Pro 64bit, Chipset-GIGABYTE-X570-AORUS MASTER
